FBSA210A/QBC軸承
鼎力晟業是SKF進口軸承代理商，不僅為工業配套用戶提供SKF FBSA210A/QBC軸承，在維修市場也提供足夠的支持，是SKF軸承在國內的優質經銷商之一，購買SKF FBSA210A/QBC軸承，鼎力晟業是您放心的選擇。
型號：FBSA210A/QBC
品牌：SKF
內徑：50
外徑：128
厚度：106
系列：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
【
手機版 FBSA210A/QBC軸承
點擊量
更新日期：2021/12/28
】
電話：020-36026999 傳真：020-36705678 服務熱線：18924187999 郵箱：sales@gzbearing.cn

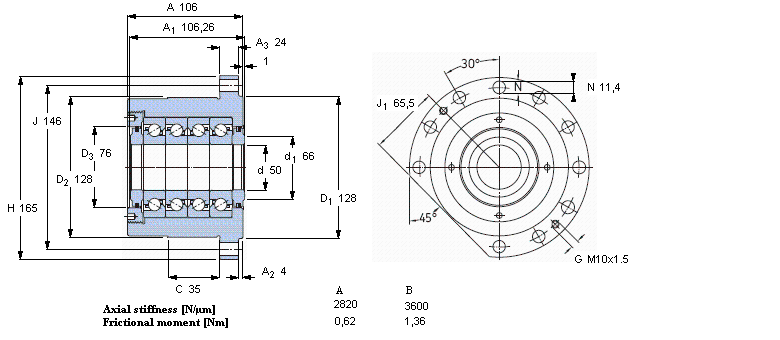

SKF FBSA210A/QBC尺寸圖紙
FBSA210A/QBC軸承基本參數
| 角接觸推力球軸承 for screw drives, cartridge units with flanged housing | |||||||||||
| 公差, inner rings, outer rings, see also text | |||||||||||
| Preload, see specific bearing, see also text | |||||||||||
| Shaft fits, housing fits | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 預壓 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 50 | 128 | 106 | 75,795 | 292 | 10,8 | 3000 | 1500 | 9,3 | FBSA 210 A/ QBC | BSQU 250/1 TDT | |
