71801ACD/HCP4軸承
SKF 71801ACD/HCP4軸承是鼎力晟業長期代理的產品，鼎力晟業與SKF公司具有長期的71801ACD/HCP4軸承采購計劃，可以為國內用戶提供足夠數量的SKF 71801ACD/HCP4軸承，讓您的工廠無憂運轉。
型號：71801ACD/HCP4
品牌：SKF
內徑：12
外徑：21
厚度：5
系列：角接觸球軸承, 精密, ACD, contact angle 25°, hybrid, super-precision
【
手機版 71801ACD/HCP4軸承
點擊量
更新日期：2021/12/28
】
電話：020-36026999 傳真：020-36705678 服務熱線：18924187999 郵箱：sales@gzbearing.cn

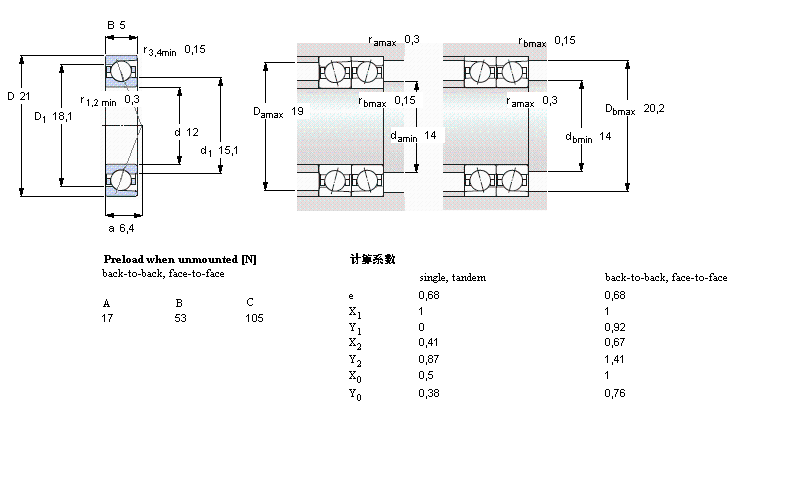

SKF 71801ACD/HCP4尺寸圖紙
71801ACD/HCP4軸承基本參數
| 角接觸球軸承, 精密, ACD, contact angle 25°, hybrid, super-precision | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 12 | 21 | 5 | 1,95 | 1,12 | 0,048 | 75000 | 110000 | 0,006 | 71801 ACD/HCP4 | SEA12 /NS 7CE3 | |
角接觸球軸承, 精密, ACD, contact angle 25°, hybrid, super-precision
- 品牌
- 型號
- 內徑
- 外徑
- 厚度
- 系列
- SKF
- 71810ACD/HCP4軸承
- 50
- 65
- 7
- 角接觸球軸承, 精密, ACD, contact angle 25°, hybrid, super-precision
- SKF
- 71821ACD/HCP4軸承
- 105
- 130
- 13
- 角接觸球軸承, 精密, ACD, contact angle 25°, hybrid, super-precision
- SKF
- 71830ACD/HCP4軸承
- 150
- 190
- 20
- 角接觸球軸承, 精密, ACD, contact angle 25°, hybrid, super-precision
- SKF
- 71832ACD/HCP4A軸承
- 160
- 200
- 20
- 角接觸球軸承, 精密, ACD, contact angle 25°, hybrid, super-precision
- SKF
- 71800ACD/HCP4軸承
- 10
- 19
- 5
- 角接觸球軸承, 精密, ACD, contact angle 25°, hybrid, super-precision
- SKF
- 71801ACD/HCP4軸承
- 12
- 21
- 5
- 角接觸球軸承, 精密, ACD, contact angle 25°, hybrid, super-precision
- SKF
- 71802ACD/HCP4軸承
- 15
- 24
- 5
- 角接觸球軸承, 精密, ACD, contact angle 25°, hybrid, super-precision
- SKF
- 71803ACD/HCP4軸承
- 17
- 26
- 5
- 角接觸球軸承, 精密, ACD, contact angle 25°, hybrid, super-precision
