S7019ACD/HCP4A軸承
SKFSKF進口軸承經銷 磐固晟為用戶提供高品質的S7019ACD/HCP4A軸承，無論是工業配套還是維修市場，用戶都可以在這里找到貨期最短的SKF S7019ACD/HCP4A軸承，確保您的不間斷生產。
型號：S7019ACD/HCP4A
品牌：SKF
內徑：95
外徑：145
厚度：24
系列：角接觸球軸承, 精密, S .. ACD/HC, sealed, contact angle 25°, hybrid
【更新日期：2016/8/3 電腦版 S7019ACD/HCP4A軸承】

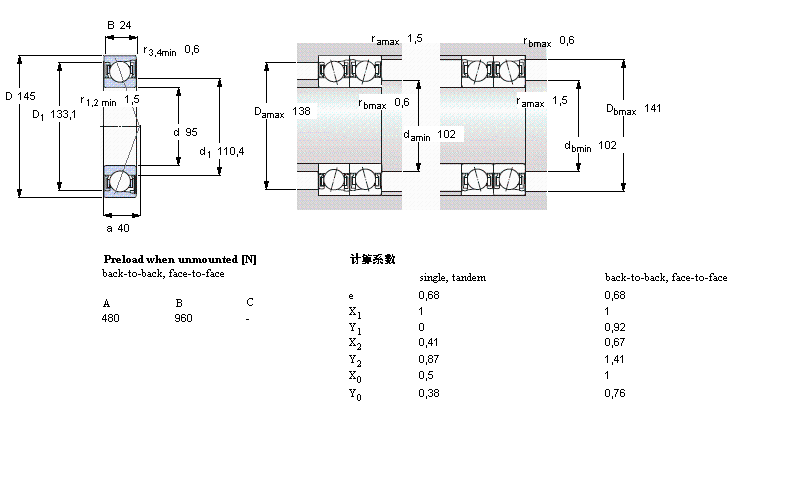

S7019ACD/HCP4A軸承
| 角接觸球軸承, 精密, S .. ACD/HC, sealed, contact angle 25°, hybrid | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 95 | 145 | 24 | 76,1 | 76,5 | 2,9 | 9000 | - | 1,00 | S7019 ACD/HCP4A | - | |
