71908ACD/HCP4A軸承
SKF磐固晟是SKF進口軸承經銷 商，不僅為工業配套用戶提供SKF 71908ACD/HCP4A軸承，在維修市場也提供足夠的支持，是SKF軸承在國內的優質經銷商之一，購買SKF 71908ACD/HCP4A軸承，磐固晟是您放心的選擇。
型號：71908ACD/HCP4A
品牌：SKF
內徑：40
外徑：62
厚度：12
系列：角接觸球軸承, 精密, ACD/HC, contact angle 25°, hybrid
【更新日期：2016/8/3 電腦版 71908ACD/HCP4A軸承】

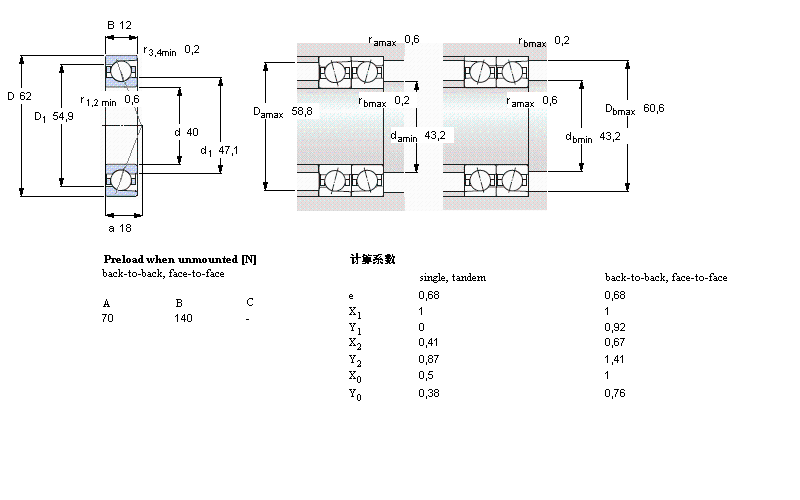

71908ACD/HCP4A軸承
| 角接觸球軸承, 精密, ACD/HC, contact angle 25°, hybrid | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 40 | 62 | 12 | 11,7 | 8 | 0,34 | 22000 | 36000 | 0,096 | 71908 ACD/HCP4A | - | |
