71820CD/HCP4A軸承
SKF購買SKF 71820CD/HCP4A軸承，及71820CD/HCP4A軸承同系列產品，或者SKF公司其他產品，請聯系SKF進口軸承經銷 -磐固晟，我們提供準時高效的服務。
型號：71820CD/HCP4A
品牌：SKF
內徑：100
外徑：125
厚度：13
系列：角接觸球軸承, 精密, CD, contact angle 15°, hybrid, super-precision
【更新日期：2016/8/3 電腦版 71820CD/HCP4A軸承】

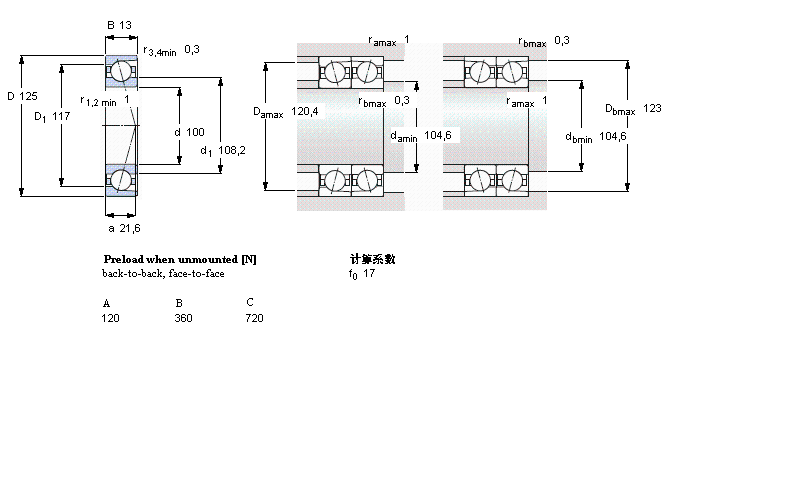

71820CD/HCP4A軸承
| 角接觸球軸承, 精密, CD, contact angle 15°, hybrid, super-precision | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 100 | 125 | 13 | 22,5 | 29 | 1,16 | 11000 | 17000 | 0,279 | 71820 CD/HCP4A | SEA100 /NS 7CE1 | |
